    You are here:Home >> Products
Products

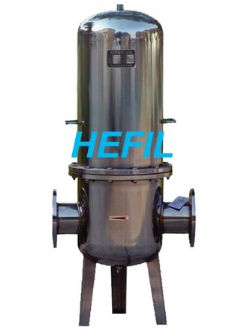

    Gas Filter

    === Applicable range ===

    ◆ of HFG series filter housings can be installed on various types of folded filter for gas filtration to form a complete set of gas filters. Reasonable design, compact structure, installation, and easy to clean, gas sterilization filter for food, medicine, chemical industry, electronics and other industries.

    ◆ of HFG filter housing can be mounted pressure gauge, pressure, after the installation of high efficiency folded filter for real-time monitoring of filter used for gas sterilization filter as fine filter.

    ◆ of HFG filter housing can be installed in effect, supporting the use of sub-efficient folding filter, fine filter, as pre-pre-filter, can extend the life of the fine through the filter, to increase efficiency.



    ===Common specifications===

===技術特性===

殼體制造材料

不銹鋼304, 316, 316L

濾芯接口型式

226 (卡入式)

管路連接方式

法蘭

HG20593-1997; PN1.0~1.6MPa

工作壓力

0.3MPa, 0.8MPa

最高工作溫度

130oC

===規格型號和外形尺寸===

額定

過濾能力

(m3/min)

殼體代號

濾芯配置

進出口接管

外形尺寸 (mm)

參考

重量

芯數

長度

d (mm)

連接

型式

D

W

H

h1

h2

0.5

HFG-0105-1"

1

5"

DN25

(Ф32x3)

法蘭

Φ114

234

434

-

250

5

2

HFG-0110-1"

10"

549

370

6

4

HFG-0120-1"

20"

800

610

8

6

HFG-0310-2"

3

10"

DN50

(Ф57x3.5)

Φ184

324

789

300

400

15

10

HFG-0320-2.5"

20"

DN65

(Ф76x4)

1046

640

23

15

HFG-0520-3"

5

DN80

(Ф89x4)

Φ234

414

1178

380

653

32

20

HFG-0520-4"

DN100

(Ф108x4)

1191

385

35

30

HFG-0720-4"

7

Φ274

474

1251

426

663

42

40

HFG-0920-5"

9

DN125

(Ф133x4)

Φ306

506

1284

438

698

55

60

HFG-1220-5"

12

Φ356

556

1303

710

64

80

HFG-1520-6"

15

DN150

(Ф159x4.5)

Φ406

606

1346

450

85

100

HFG-1920-6"

19

Φ456

656

1375

105

120

HFG-2520-8"

25

DN200

(Ф219x6)

Φ506

706

1501

505

735

125

150

HFG-3020-8"

30

Φ556

756

1514

150

200

HFG-4020-10"

40

DN250

(Ф273x6)

Φ706

946

1669

550

260

1、若遇規格、結構變更,以本公司提供的最新數據為準

2、本公司接受非表上規格過濾器產品的訂貨
